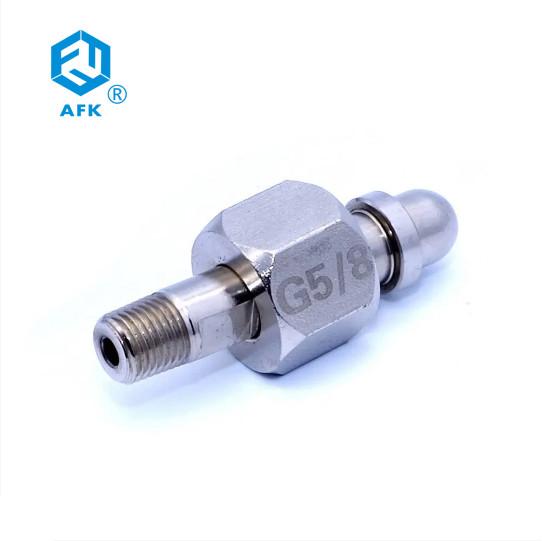

Hexagon DIN477 BS341 CGA Gas Cylinder Adapter 316 Male Thread

Brand Name : AFK

Model Number : DIN477

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt PackingProduct Name: cylinder connector Connection 1: BS341, DIN477, CGA, GB standard Connection 2: 1/4″NPT M or 1/4″BSPP male Body material: ss316, nickel plated brass

Material : Stainless Steel,Stainless steel 304 or 316,Stainless Steel304 316L

Connection : Male

Standard : DIN

Medium : Gas

Name : Stainless Steel Gas Cylinder Adapter

Warranty : 1 Year

Shape : Equal

Head code : Hexagon

Technics : Forged

Contact Now

Product Name: cylinder connector

Connection 1: BS341, DIN477, CGA, GB standard

Connection 2: 1/4″NPT M or 1/4″BSPP male

Body material: ss316, nickel plated brass

Configuration Item Number	Cylinder Connection	Thread	Length	Pressure Rating
009	BS341 No.3(Base Entry)	1/4” NPT Male	95mm-101mm/3.75”-4.00”	250 bar / 3625 PSI
010	BS341 No.3	1/4” NPT Male	95mm-101mm / 3.75” -4.00”	250 bar / 3625 PSI
011	BS341 No.4 (Base Entry)	1/4″ NPT Male	67mm/2.625”	250 bar/3625 PSI
012	BS341 No.4	1/4” NPT Male	95mm-101mm/3 75”-4.00”	250 bar/3625 PSI
013	BS341 No.6	1/4” NPT Male	95mm-101mm/3 75”-4.00”	250 bar / 3625 PSI
014	BS341 No.7	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	250 bar/ 3625 PSI
015	BS341 No.8	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	250 bar/ 3625 PSI
016	BS341 No.10	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	250 bar/3625 PSI
017	BS341 No 11	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	250 bar 7 3625 PSI
018	BS341 No. 13	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	50 bar/725 PSI
019	BS341 No 14	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	250 bar/3625 PSI
020	BS341 No.15	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	250 bar 7 3625 PSI
021	BS341 No30	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
022	BS341 No 31	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
023	BS341 No32	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar 74350 PSI
024	BS341 No 38	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
025	DIN 477 No.1	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
026	DIN 477 No.2	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
027	DIN 477 No.3	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	25 bar/ 360 PSI
028	DIN 477 No 31	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	25 bar/360 PSI
029	DIN 477 No.5	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	Refer to DIN 477 Standard
030	DIN 477 No.6	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
031	DIN 477 No.7	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	Refer to DIN 477 Standard
032	DIN 477 No.8	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	Refer to DIN 477 Standard
033	DIN 477 No. 9	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
034	DIN 477 No.10	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
035	DIN 477 No.11	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	Refer to DIN 477 Standard
036	DIN 477NO.12	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	Refer to DIN 477 Standard
037	DIN 477 NO.13	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
038	DIN 477 NO 14	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	300 bar/4350 PSI
039	CGA170	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
040	CGA180	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
041	CGA280	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
042	CGA290	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	34 5 bar/500 PSI
043	CGA296	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
044	CGA300	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	34 5 bar/500 PSI
045	CGA320	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
046	CGA326	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
047	CGA330	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
048	CGA346	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
049	CGA350	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
050	CGA510	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	34.5 bar/500 PSI
0S1	CGA520	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	345 bar/500 PSI
052	CGA540	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
053	CGA580	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
0M	CGA590	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/3000 PSI
055	CGA660	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/ 3000 PSI
056	CGA705	1/4″ NPT Male	95mm-101mm/3 75”-4.00”	207 bar/ 3000 PSI

Our Company

Shenzhen Wofei Technology Co. , Ltd. was established in 2011, the registered capital of the company is 21.8 million yuan; is a professional engaged in the design and installation of gas systems engineering, technical services consulting and supporting product production and sales as one of the national high-tech enterprises. The company has national construction mechanical and electrical installation engineering professional contract qualification, GC2 pressure pipeline design and installation qualification, construction safety production license and other professional qualifications. Headquartered in Shenzhen, Wuhan Subsidiary Company, Hong Kong subsidiary and the Xi'an Office.
