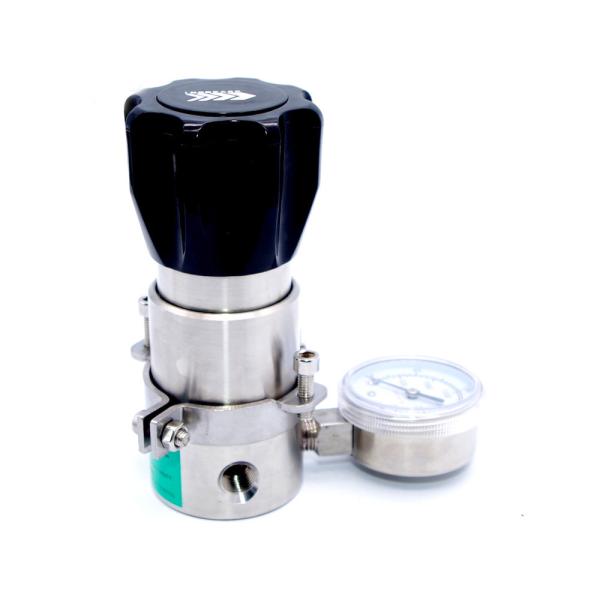

Stainless Steel Back Pressure Regulating Valve Low Pressure For Power Plant

Place of Origin : Guangdong, China (Mainland)

Brand Name : AFK

Model Number : R75

Supply Ability : 10000 Set/Sets per Week

Packaging Details : Export packing

MOQ : >=1 Sets

Price : Negotiable

Certification : CE

Structure : Piston-sensed Configuration

Maximum inlet pressure : 1500 psi

Proof pressure : 1.5 times of maximum inlet pressure

Working temperature : -40° F ~+165° F(-40°C+74°C)

Leakage rate : 2*10-8 atm cc/sec He

Cv : 0.06

Body material : 316L

Seat : PCTFE, Vespel

Port : SHENZHEN

Contact Now

Main Features

Name: RW75 Back pressure regulator
Brand: AFK
Original: China
RW75 Series Back pressure Regulator is Piston-sensed single-stage regulator, applicable to where high pressure and low flow control is desired. Available in stainless steel.

Features

* Piston-sensed Configuration
*Body port size: 1/4" NPT (F)
*2" Pressure Gauge
*Proof Pressure: 1.5 times maximum inlet pressure
*Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)

*Leak Rate: 2 X 10-8 atm. cc/sec He

*CV:0.06

Materials

* Body: 316L

* Seat: PCTFE, Vespel

* Piston: 316L

* O-ring: Viton

Typical applications

* Gas Chromatography

* Research Laboratories

* Petrochemical Industry

* Power Plant

ORDERING INFORMATION
SERIES	BODY MATERIAL	BODY PORTS	INLET PRESSURE	GAUGES	INLET CONNECTION	OUTLET CONNECTION
RW75	L	A	G	G	00	00
	L: 316L B: brass	A B	G: 0-150Psi I : 0-300Psi K: 0-600Psi L: 0-800Psi H: 0-15000Psi	W: None P: psi/bar G: Mpa	00:1/4" NPT(F) 01:1/4" NPT(M) 10:1/8" LOK 11: 1/4" LOK 12: 3/8" LOK	00:1/4" NPT(F) 01:1/4" NPT(M) 10:1/8" LOK 11: 1/4" LOK 12: 3/8" LOK
